The temperature range on this Cadet Energy Plus In-Wall Heater is 40 to 90 degrees (Fahrenheit.)

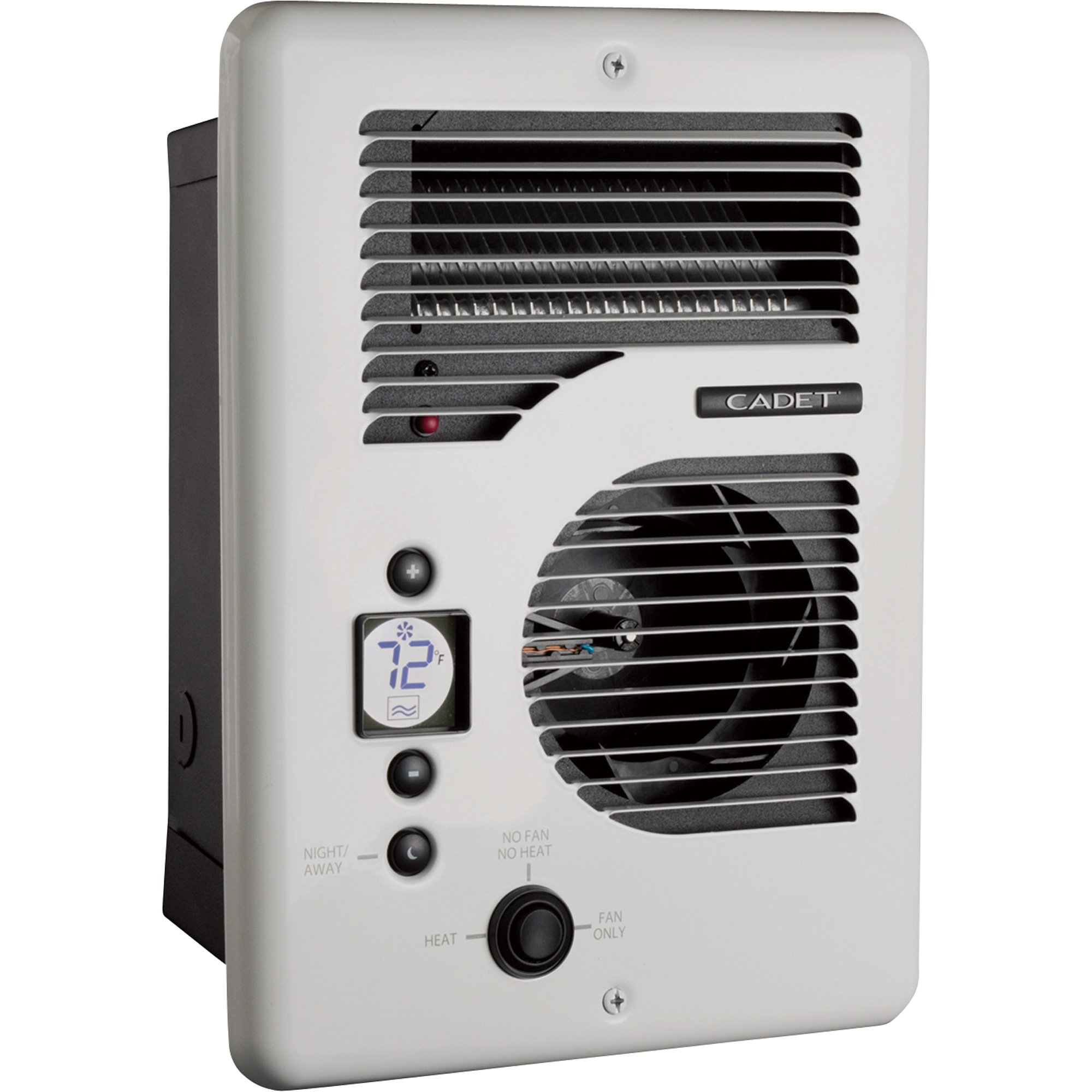

Cadet Energy Plus In-Wall Heater — 240/208/120 Volt, Digital Thermostat, Model# CEC163TW
This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.
Click or Tap image to Zoom
- Auto adjusting fan speed eliminates wide temperature swings
- Smart sensor detects incoming power supply and displays code if not configured correctly
- Switchable voltage: preset at 240V, easily switches to 208V or 120V
- Easily updates Cadet Com-Pak Series heaters
- Includes digital thermostat
See full description
-
What is the low range of the thermostate?
What is the range of the built in thermostate?
-
Helpful?
-
Hello and thanks for the question!
The temperature range for the Cadet Energy Plus is 40 to 90 degrees Fahrenheit. As programming options, you can preset maximum and/or minimum set points, as well as child safety, and tamper proof settings. And you can preset a night or away temperature set point, for quick and easy “one-touch” energy savings.
Happy Holidays,Helpful?
-
-
I need a heater that heat 1,000 square foot room. Is this heater strong enough?
Cadet Energy Plus In-Wall Heater - 240/208/120 Volt, Digital Thermostat, Model# CE163TW. If not, I need suggestion to do so. Need a thermostat that I can set.
-
The Cadet Energy Plus heater will heat a space approximately 250 square feet running at 1600 Watts (240 Volts). To heat a room that size, you could install four of these heaters. Another option would be to install two 3000 Watt Cadet Com-Pak Twin heaters.
You will need to have two dedicated 240 Volt circuits using 12/2 wire with ground and a 20 Amp double pole breaker on each circuit. Also when you install multiple heaters on one circuit you need to install them in parallel and not in a series. If you have further electrical wiring questions, please consult a licensed electrical contractor.
Helpful?
-
The Cadet In-Wall Heater will heat an area of 200 - 300 sq. ft. We do not offer an electric wall heater that only one unit will heat a 1,000 square foot area.
Helpful?
-
See All Electric Baseboard + Wall Heaters
See All Electric Baseboard + Wall Heaters
Currently Viewing This Product
Item # 29730
Shipping: Sold Out
Specifications
Specifications
Cadet Energy Plus In-Wall Heater — 240/208/120 Volt, Digital Thermostat, Model# CEC163TW
TPI Fan-Forced Electric Heater - 50kW, 480V, 170600 BTU, 3500 Sq. Ft. Heating Capability, Powder-Coated Steel, Model# P3P5150CA1N
TPI Fan-Forced Electric Heater - 7.5kW, 480V, 25600 BTU, 750 Sq. Ft. Heating Capability, Model# P3P5107CA1N
TPI Fan-Forced Electric Unit Heater - 5kW, 17100 BTU, 500 Sq. Ft. Heating Capability, Heavy-Duty Steel, Model# HF2B5105N
Hardwired
Same
Yes
Yes
Yes
Yes
Blower Included
Same
Yes
-
-
-
Thermostat Included
Same
Yes
No
No
No
Volts
Same
Multi
480
480
208/240
Watts
Same
1600
50,000
7,500
5,000
Heat Settings
Same
2
-
-
-
Thermal Cutoff Safety Device
Same
Yes
-
-
-
Heat Output
Same
-
170,600 Btu/hour
25,600 Btu/hour
17,100 Btu/hour
Heating Capability
Same
-
3,500 ft²
750 ft²
500 ft²
Heat Type
Same
-
Forced Air
Forced Air
Forced Air
Vent-Free
Same
-
Yes
Yes
Yes
Assembled Width
Same
-
29.25 in
21.5 in
14.5 in
Assembled Height
Same
-
34 in
24.5 in
17.75 in
Assembled Depth
Same
-
10 in
6.5 in
6.5 in
Remote Included
Same
-
No
No
No
Needs Direct Venting
Same
-
No
No
No
