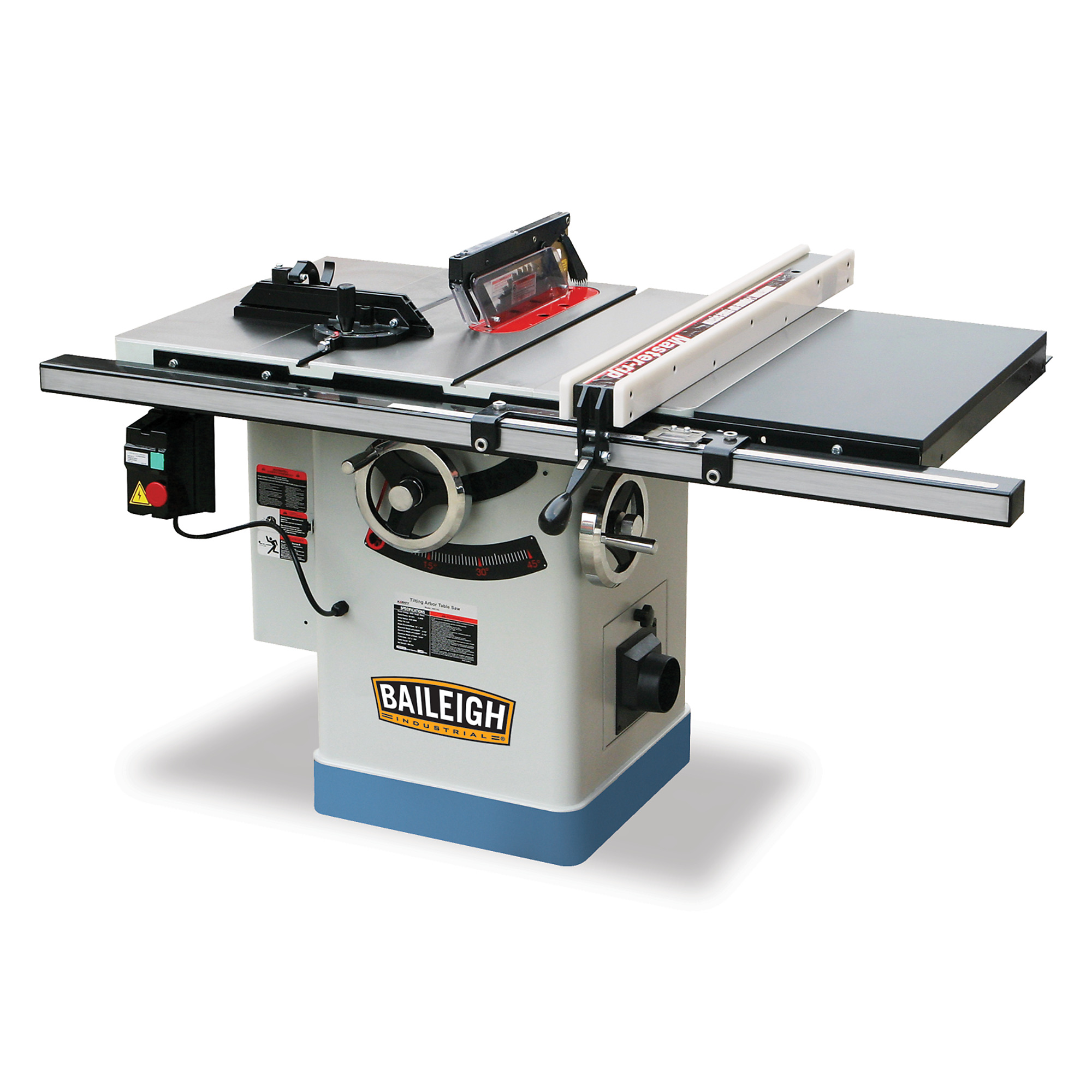

Baileigh, Table Saw, Blade Diameter 10 Horsepower 3 HP, Volts 220 Model# TS-1040P-30-V2

Item# 5002574
Baileigh, Table Saw, Blade Diameter 10 Horsepower 3 HP, Volts 220 Model# TS-1040P-30-V2

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Table Saw, Blade Diameter 10 Horsepower 3 HP, Volts 220 Model# TS-1040P-30-V2

Click or Tap image to Zoom

  • 30 In. right-side rip capacity, (also available in a 50 In. rip model.), 3HP motor turns at 4300 Rpm, Runs on 220V 1 Phase power, so it will work in almost any shop, uses standard 10 In. blades with 5/8 In. arbor

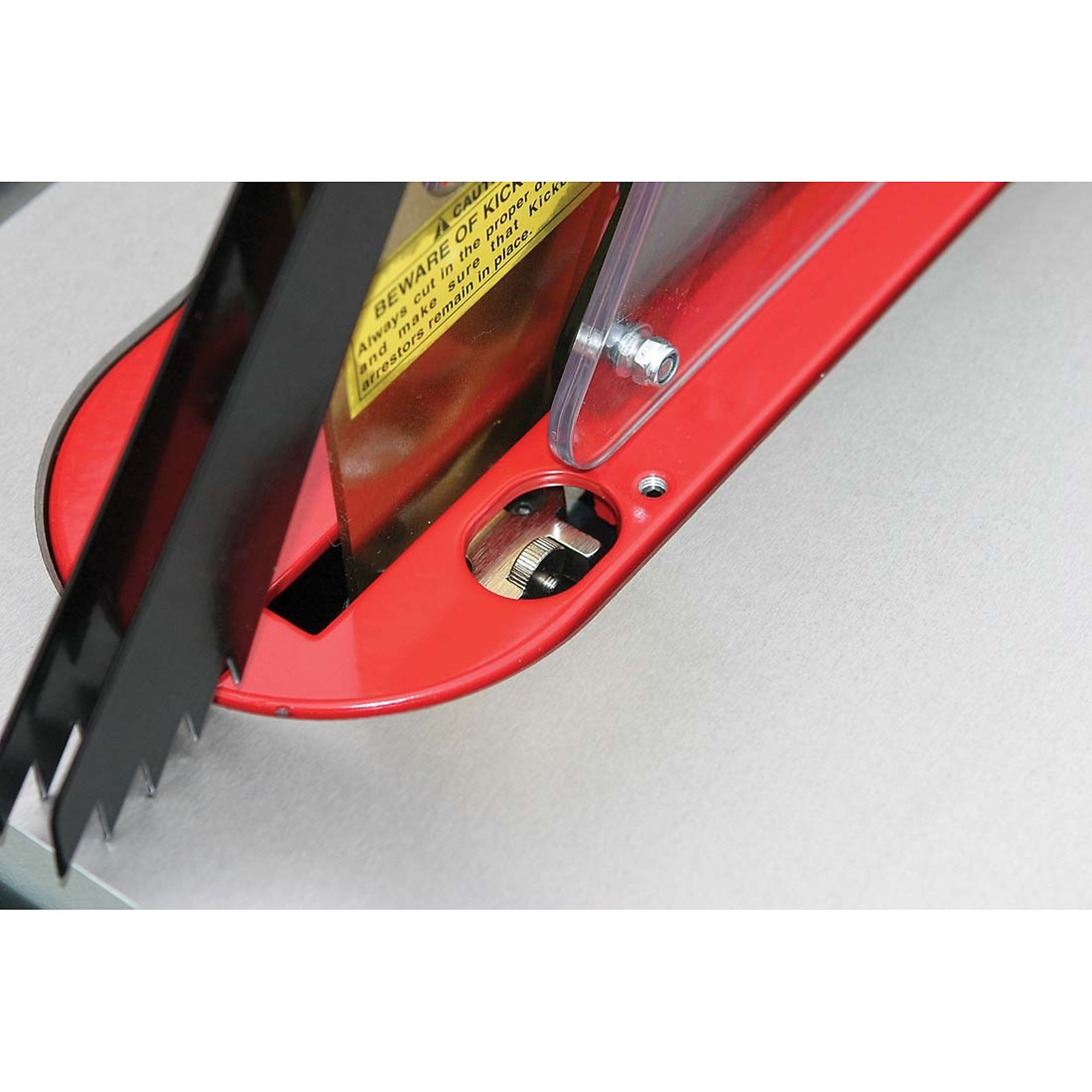

  • Includes standard and dado inserts, 40 In. x 27 In. table, made of cast iron, with 30 In. extension boards, made of impregnated poly, help you handle large, awkward pieces, tabletop is webbed into the base to stay square and true, heat and moisture in your shop won’t warp it, wood glides across the ground and polished cast iron table surface, you can bring back the original smooth shine even after years of use

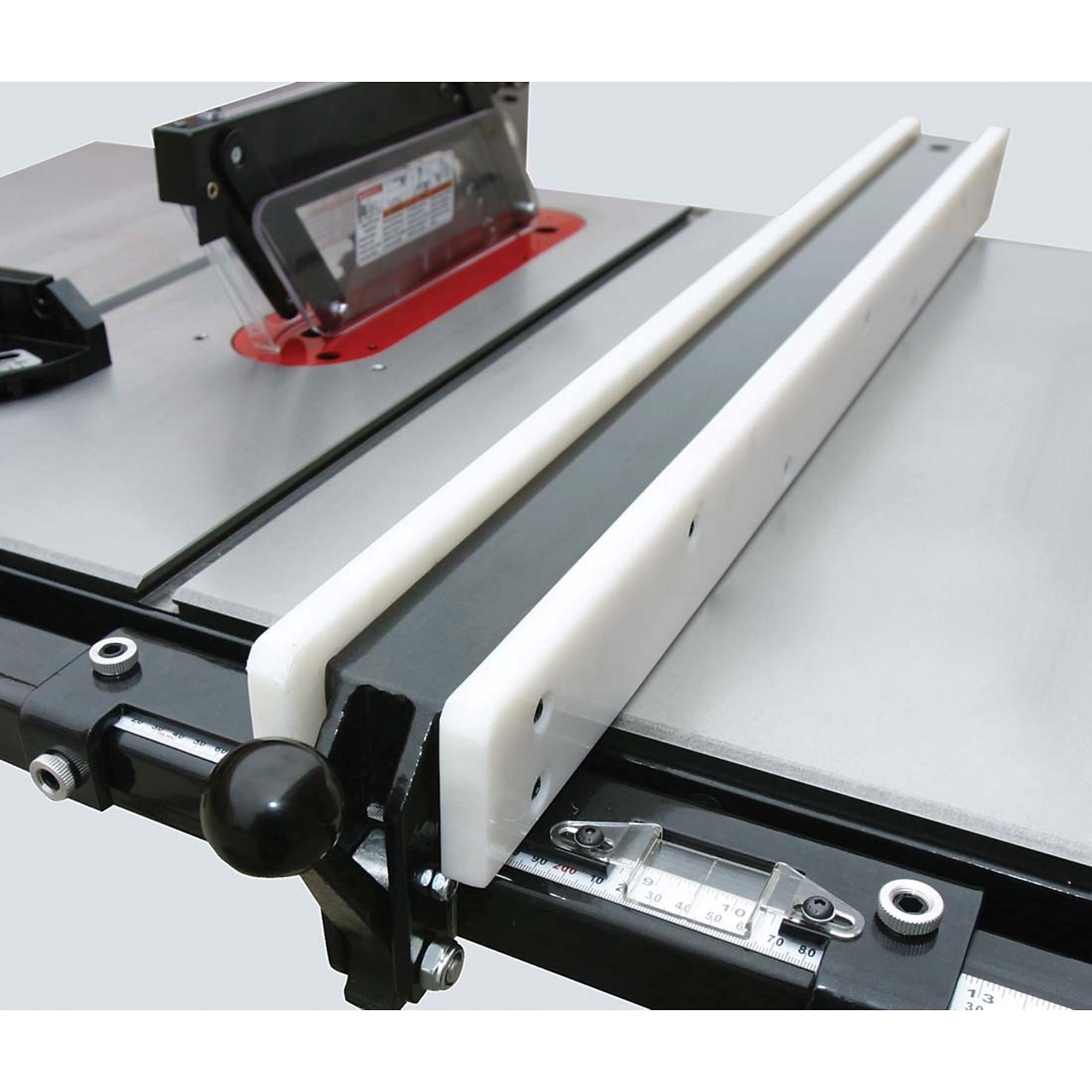

  • Rip fence made of heavy UHMW plastic makes it easy for you to slide wood, you can inexpensively replace the rip fence plastic-convenient if you drill into it while using a unusually-shaped jig, steel handwheels with locks on the base let you adjust the blade height and miter angle

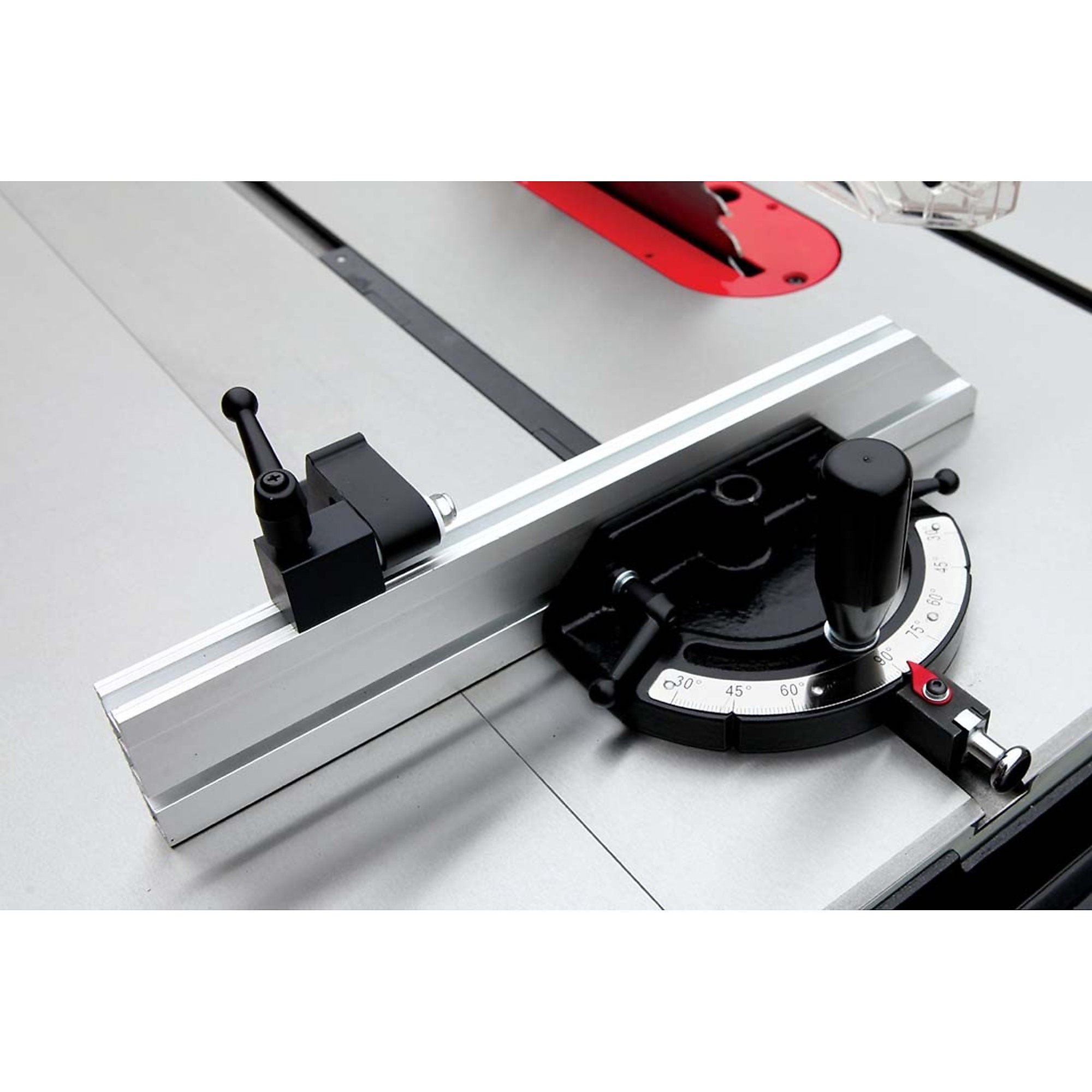

  • Comes standard with a miter gauge for repeatability

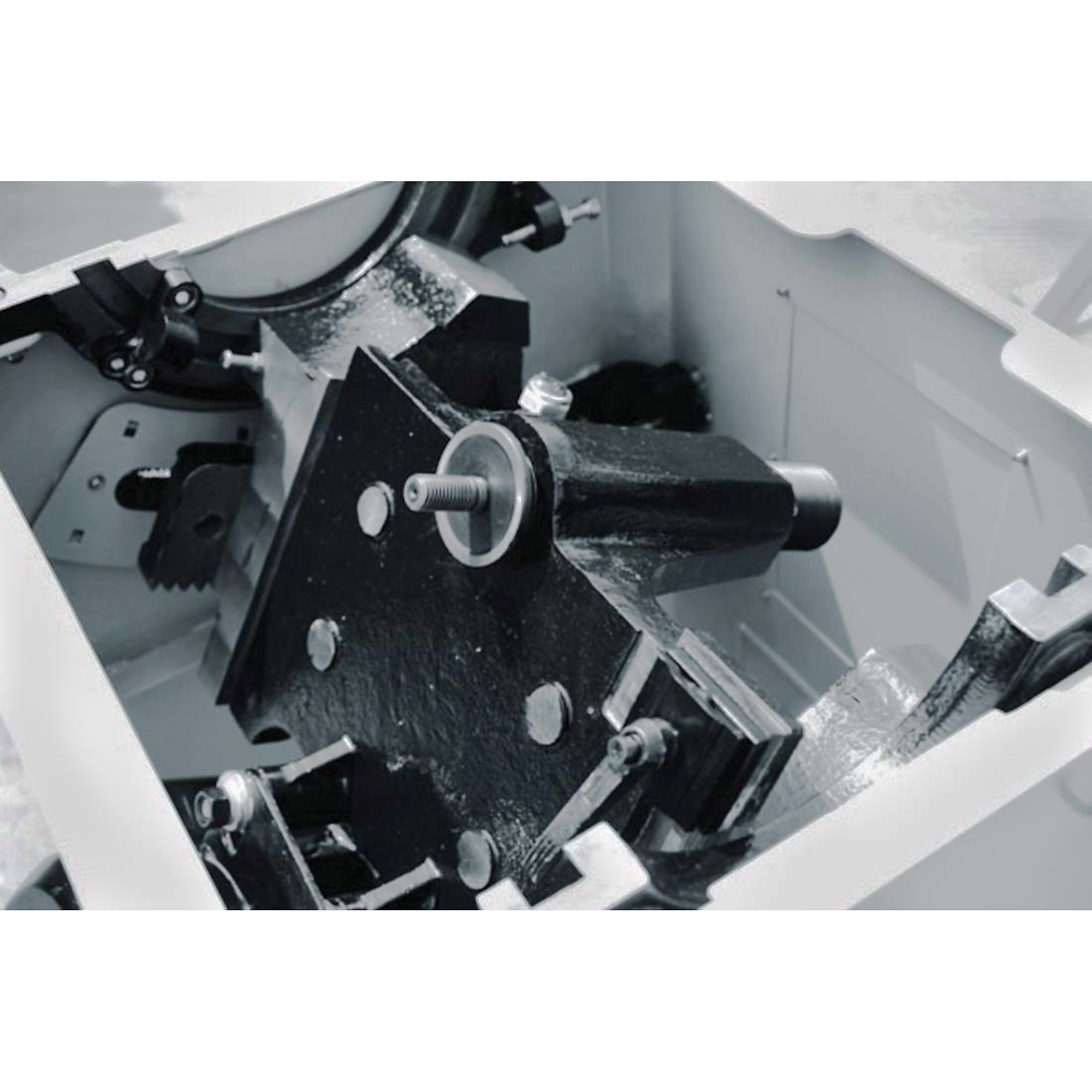

  • Trunnion attached to the base prevents the machine from wobbling and keeps noise within a safe decibel range

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

We designed this 550-pound cabinet saw for professional accuracy. The steel base and cast-iron table reduce vibrations and keep correct alignment, so you can make perfect joints.

What's Included

    (1) Table Saw

Features + Benefits

  • 30 In. right-side rip capacity, (also available in a 50 In. rip model.), 3HP motor turns at 4300 Rpm, Runs on 220V 1 Phase power, so it will work in almost any shop, uses standard 10 In. blades with 5/8 In. arbor
  • Includes standard and dado inserts, 40 In. x 27 In. table, made of cast iron, with 30 In. extension boards, made of impregnated poly, help you handle large, awkward pieces, tabletop is webbed into the base to stay square and true, heat and moisture in your shop won’t warp it, wood glides across the ground and polished cast iron table surface, you can bring back the original smooth shine even after years of use
  • Rip fence made of heavy UHMW plastic makes it easy for you to slide wood, you can inexpensively replace the rip fence plastic-convenient if you drill into it while using a unusually-shaped jig, steel handwheels with locks on the base let you adjust the blade height and miter angle
  • Comes standard with a miter gauge for repeatability
  • Trunnion attached to the base prevents the machine from wobbling and keeps noise within a safe decibel range

Key Specs

AttributeSpecification

item#

5002574

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

620.0 LB

Blade Diameter

10

Horsepower

3 HP

Volts

220

Motor Phase

Single-phase

Amps

30
AttributeSpecification

Product Type

Table Saws

Table Included

Yes

Max. Cut to Right

30 in

Blade Tilt Direction

Left

Arbor Size

5/8 in

Table Material

Cast Iron

Dust Collection Port Size

4 in

Product Weight

620.0000 lb

Dimensions L x W x H (in.)

36.0 x 36.0 x 98.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
