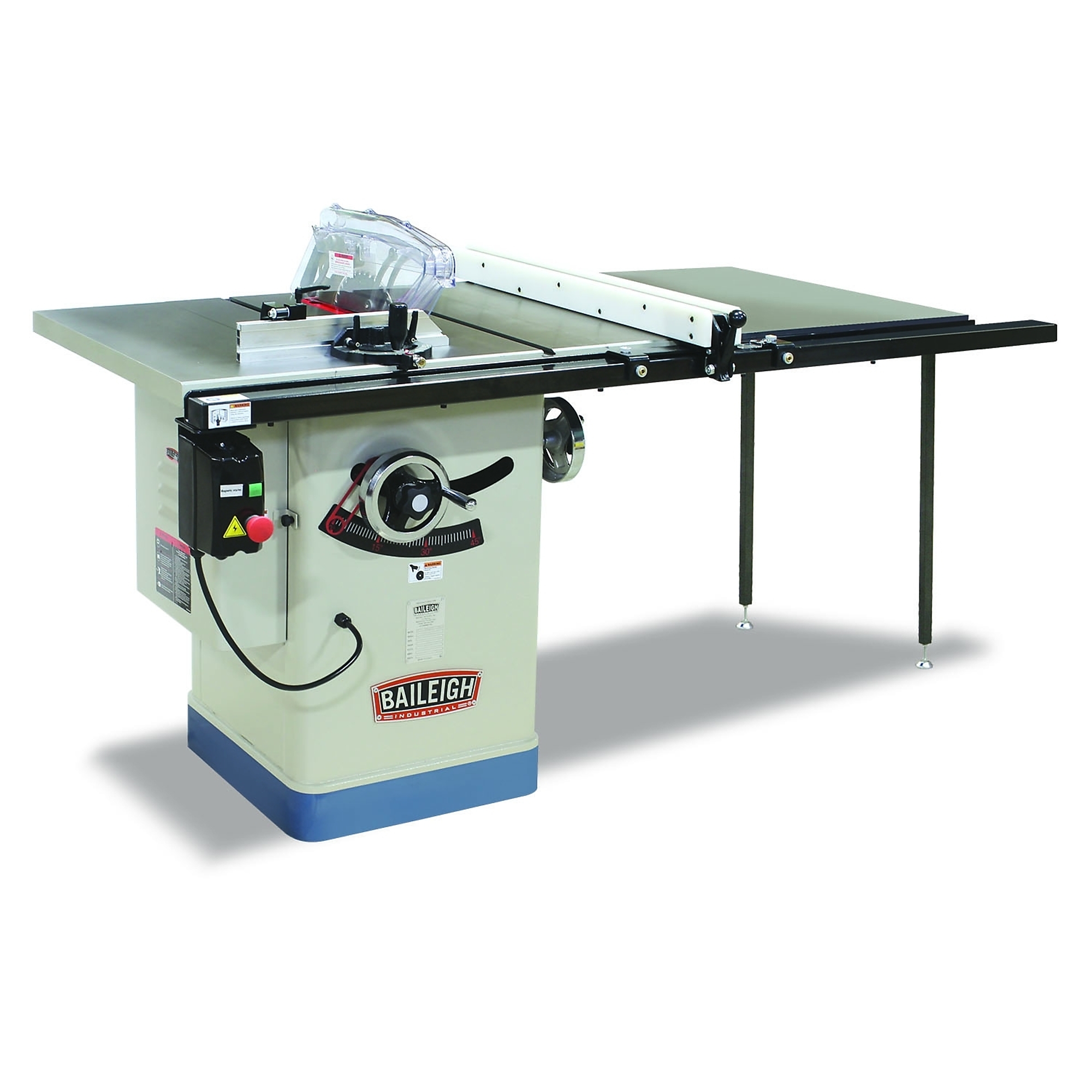

Baileigh, Table Saw, Blade Diameter 10 Horsepower 2 HP, Volts 220 Model# TS-1040E-50-V3

Item# 5002523
Baileigh, Table Saw, Blade Diameter 10 Horsepower 2 HP, Volts 220 Model# TS-1040E-50-V3

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

Baileigh, Table Saw, Blade Diameter 10 Horsepower 2 HP, Volts 220 Model# TS-1040E-50-V3

Click or Tap image to Zoom

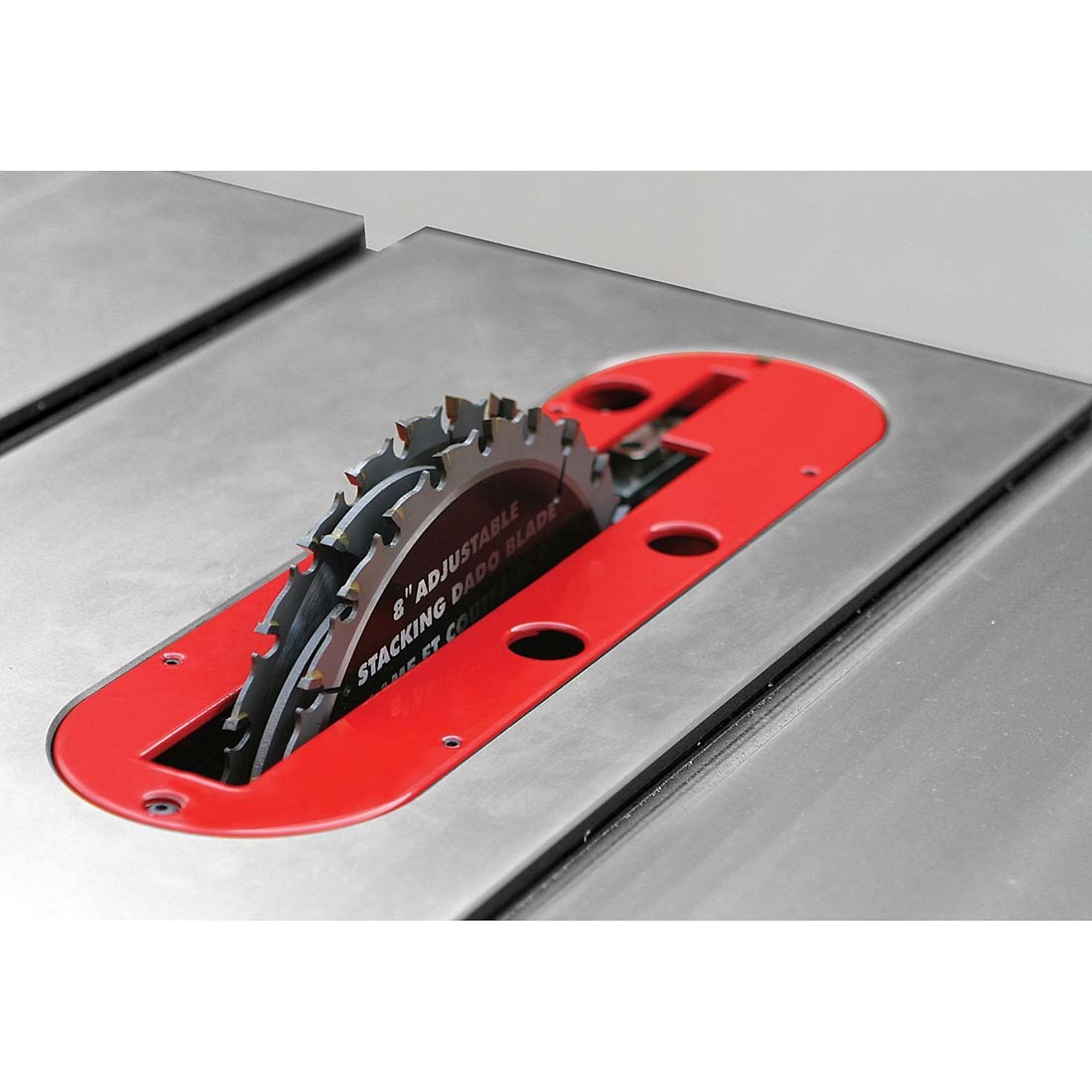

  • 50 In. right-side rip capacity, entry level cabinet saw also available in a 30 In. rip capacity model, 2.5HP leeson motor turns the blade at 3850 Rpm, Runs on 220V 1 Phase power, uses standard 10 In. blades with 5/8 In. arbor, comes with both standard and dado inserts

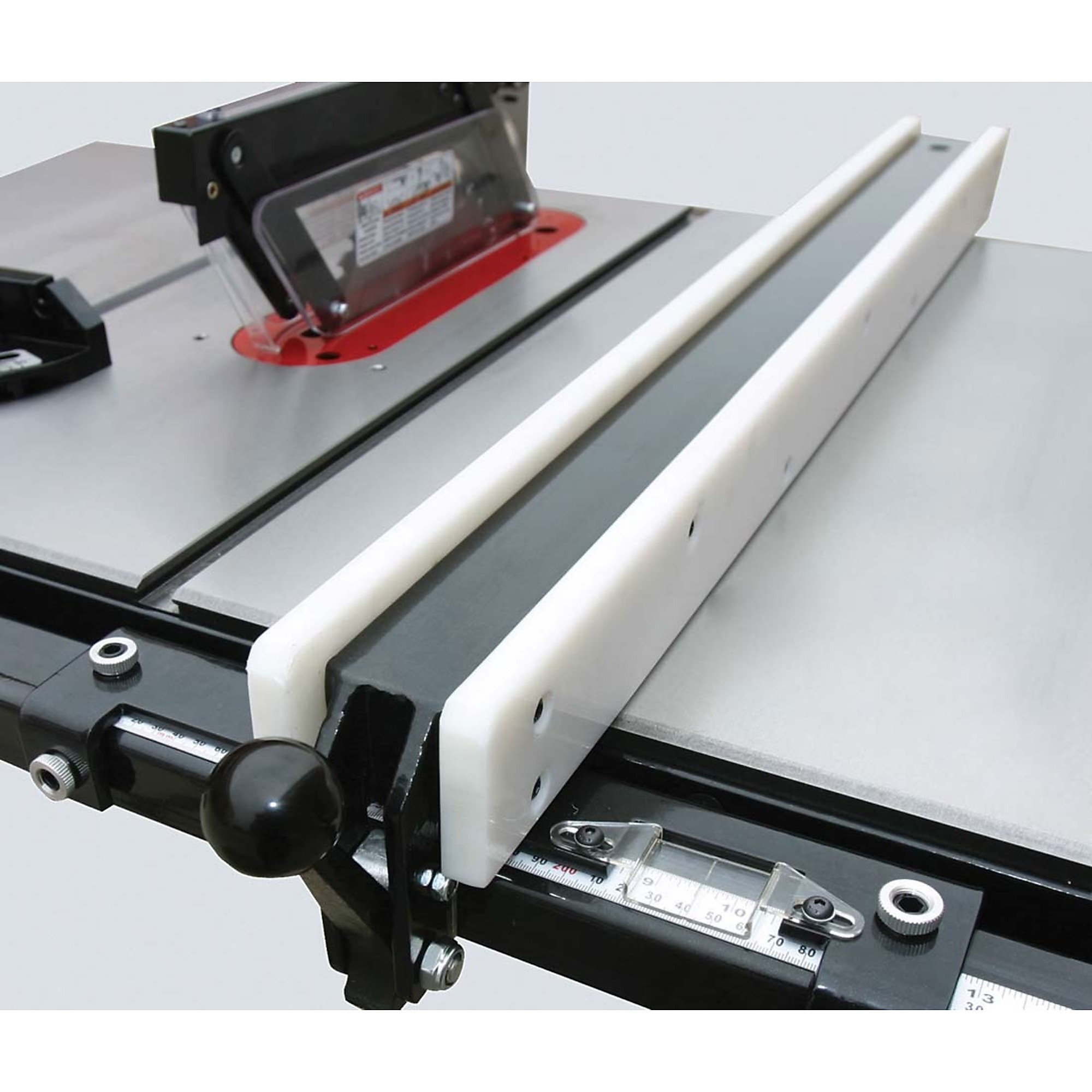

  • 40 In. x 27 In. table and extensions made from precision-ground cast iron, table is webbed into the base with a crisscross pattern that prevents warping or shrinkage, the cast iron surface will remain true, extension boards help you cut materials that are big and tough to handle, heavy-duty hardened UHMW plastic rip fence makes it easy to slide material towards the blade
  • You can cheaply replace the rip fence if you drill into it (convenient if you use unusually-shaped jigs), designed with the trunnion attached to the base, so the machine won’t wobble or exceed a safe decibel noise range, attached trunnion also dampens noise to a safe decibel range, robust welded steel framework minimizes vibrations, so you don’t have to worry about the blade shifting back and forth with the table

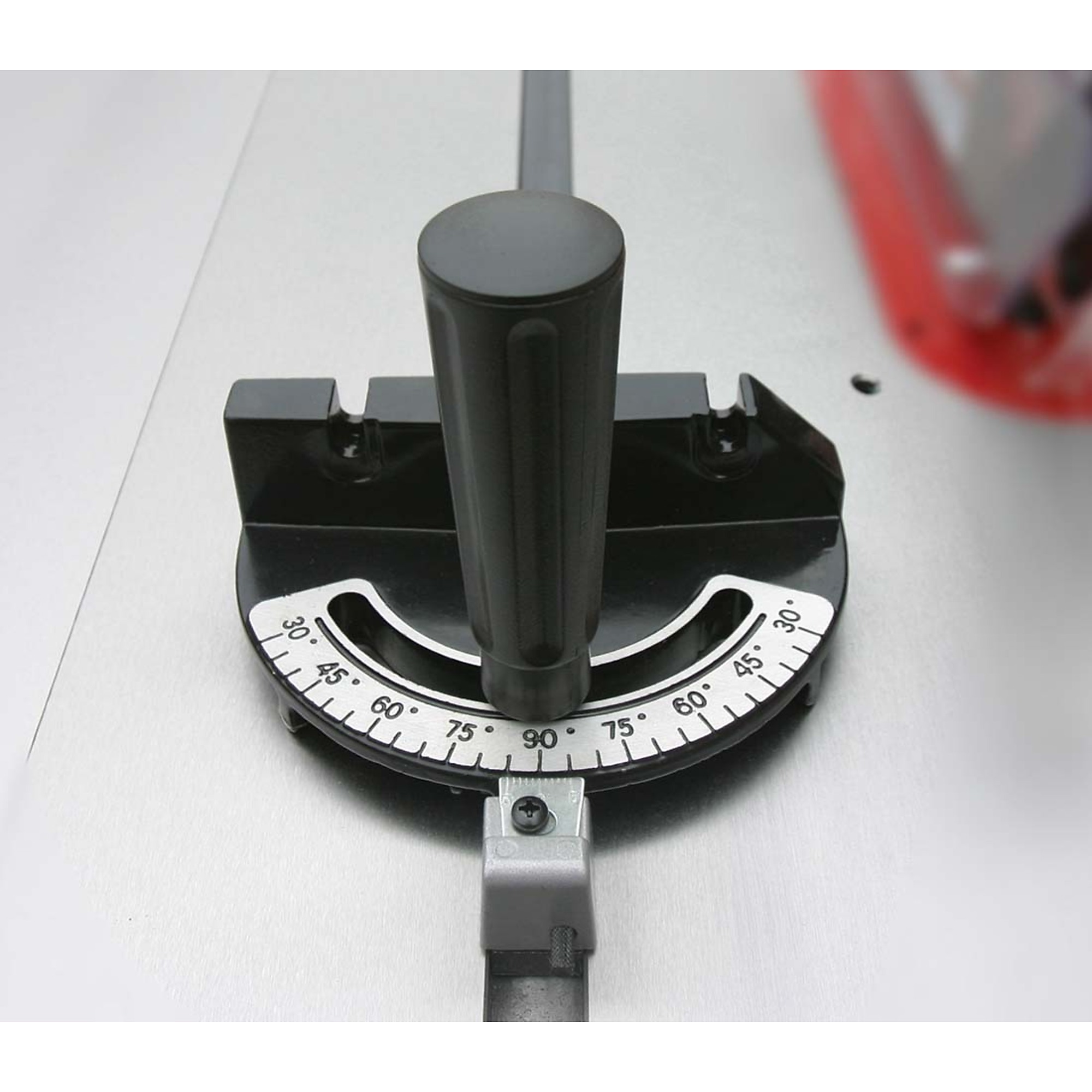

  • 2 steel handwheels on the cabinet allow you to change the blade height and the miter angle, miter gauge located on base
  • 4 In. dust collection port lets you hook up an extraction system

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Cut with accuracy for an economical price with this entry level cabinet saw. The cast iron table and the steel base, fastened to the trunnion, keep vibrations down to a minimum.

What's Included

    (1) Table Saw

Features + Benefits

  • 50 In. right-side rip capacity, entry level cabinet saw also available in a 30 In. rip capacity model, 2.5HP leeson motor turns the blade at 3850 Rpm, Runs on 220V 1 Phase power, uses standard 10 In. blades with 5/8 In. arbor, comes with both standard and dado inserts
  • 40 In. x 27 In. table and extensions made from precision-ground cast iron, table is webbed into the base with a crisscross pattern that prevents warping or shrinkage, the cast iron surface will remain true, extension boards help you cut materials that are big and tough to handle, heavy-duty hardened UHMW plastic rip fence makes it easy to slide material towards the blade
  • You can cheaply replace the rip fence if you drill into it (convenient if you use unusually-shaped jigs), designed with the trunnion attached to the base, so the machine won’t wobble or exceed a safe decibel noise range, attached trunnion also dampens noise to a safe decibel range, robust welded steel framework minimizes vibrations, so you don’t have to worry about the blade shifting back and forth with the table
  • 2 steel handwheels on the cabinet allow you to change the blade height and the miter angle, miter gauge located on base
  • 4 In. dust collection port lets you hook up an extraction system

Key Specs

AttributeSpecification

item#

5002523

Brand

Baileigh

Manufacturer's Warranty

1 year limited warranty

Ship Weight

550.0 LB

Blade Diameter

10

Horsepower

2 HP

Volts

220

Motor Phase

Single-phase

Amps

30
AttributeSpecification

Product Type

Table Saws

Table Included

Yes

Max. Cut to Right

30 in

Blade Tilt Direction

Left

Arbor Size

5/8 in

Table Material

Cast Iron

Dust Collection Port Size

4 in

Product Weight

550.0000 lb

Dimensions L x W x H (in.)

36.0 x 36.0 x 98.0 in

Reviews

Questions & Answers

Questions

Warranty

Manufacturer's Warranty

1 year limited warranty
