American Forge & Foundry - Collision & Body Repair Kit - 20 Ton Capacity - 21 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY

Item# 6699078
American Forge & Foundry - Collision & Body Repair Kit - 20 Ton Capacity - 21 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY

This is a carousel with one large zoomable image and a track of thumbnails on the left. Select any of the thumbnail buttons to change the zoomable image on the right. If a thumbnail is a video or 360 degree image thumbnail, or the last thumbnail in the list, the button will open the product media modal.

American Forge & Foundry - Collision & Body Repair Kit - 20 Ton Capacity - 21 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY

Click or Tap image to Zoom

  • Contains all the tools necessary for pushing, spreading, and pressing of vehicle body panels, parts, frames, and assemblies. Snap-lock design for quick and easy assembly.
  • Auto air bleed pump eliminates the need to bleed system prior to use.

  • Prop 65 Warning: See Details

See full description

  • Description

  • Key Specs

  • Reviews

  • Q & A

  • Warranty

  • Compare

Product Summary

Offering a wide assortment of Hydraulic Rams for use in high force applications including lifting, pulling, pushing, bending and alignment. Choose from complete kits or individual styles.
  • Color: Red/Black
  • Product Type: Body Repair Kit
  • Ram Capacity (Tons): 20
  • Ram Stroke (Inch): 5.00
  • Ram Effective Area (Square Inch): 5.14
  • Ram Oil Capacity (ml): 425
  • Ram Collapsed Height (Closed) Inch: 11.1
  • Ram Extended Height (Inch): 16
  • Ram Outside Diameter of the Unit (Inch): 3.23
  • Ram Diameter (Inch): 2.36
  • Ram Saddle Diameter (Inch): 2.13
  • Ram Optimal Pressure: 8,567 PSI
  • Ram Weight (Lbs.): 20.28
  • Hand Pump Rated Pressure (PSI): 8,567
  • Hand Pump Output per Stroke (Ram Cylinder Extended Length Per Stroke) (Inch): 0.183
  • Hand Pump Oil Capacity (ml): 800
  • Hand Pump Optimal Force (Lbs.): 143.88-148.37
  • Hand Pump Piston Stroke (Inch): 0.98
  • Hand Pump Oil Output Thread: 1/4” NPTF
  • Hand Pump Weight (Lbs.): 14.12
  • Kit Extension Lengths: 3”, 5”, 10”, 18”, 30”
  • Hose: 1/4”, 5’, Double Braided
  • Standards: ASME/PASE 2019
  • Warranty: 1 Year

    • What's Included

      (1) Collision & Body Repair Kit - 10 Ton Capacity - 21 pc Kit - With 2 Speed Quick Pump - Includes Pressure Guage - SUPER DUTY

    Features + Benefits

    • Contains all the tools necessary for pushing, spreading, and pressing of vehicle body panels, parts, frames, and assemblies. Snap-lock design for quick and easy assembly.
    • Auto air bleed pump eliminates the need to bleed system prior to use.
    • Automatic pump overload system protects against damage to rams and equipment.
    • Heavy walled extensions stand up to the toughest of working applications that are interchangeable with other body and frame kits.

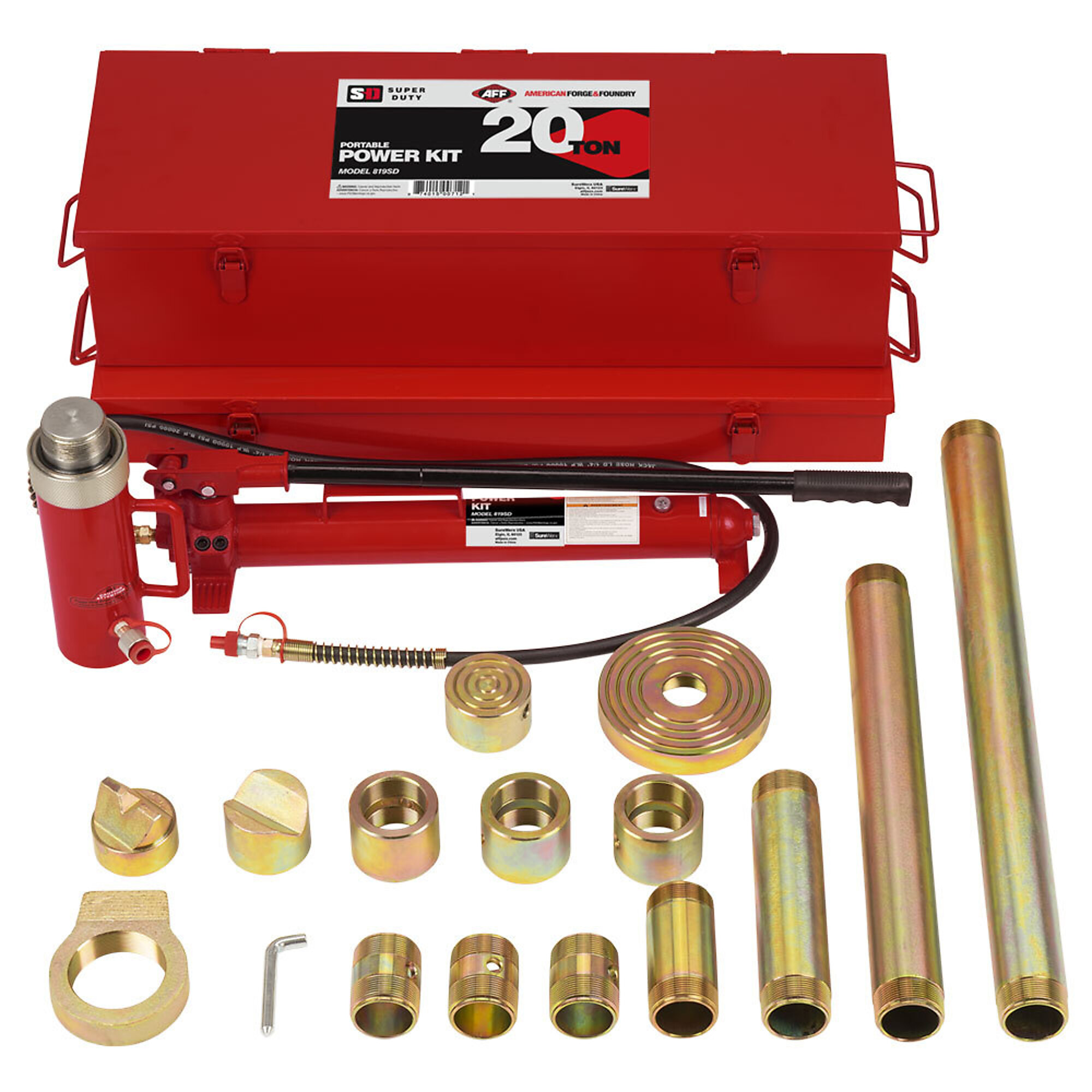

    • Chrome plated pump core and piston rod for increased durability and long life. Long handle provides a very low pumping effort. Double braided hydraulic hose provides protection against abrasion and heavy wear. Includes metal case for easy transport and storage. Kit Includes: Hand Pump, Ram, Metal Case (Qty 2), Wrench, Base, Ram Toe, V-Base, Wedge Toe, Plunger Toe, Ram Coupler Set, 3” Extension Tube (Qty 3), 5” Extension Tube, 10” Extension Tube, 18” Extension Tube, 30” Extension Tube, Threaded Coupling (Qty 3).

    Key Specs

    AttributeSpecification

    item#

    		6699078

    Brand

    		American Forge & Foundry

    Manufacturer's Warranty

    		1 year limited warranty

    Ship Weight

    		139.0 LB

    Product Type

    		Body Tool
    AttributeSpecification

    Single, Pair, or Set

    		Set

    Material

    		Combination

    Product Weight

    		139.0000 lb

    Dimensions L x W x H (in.)

    		31.9 x 7.5 x 12.0 in
