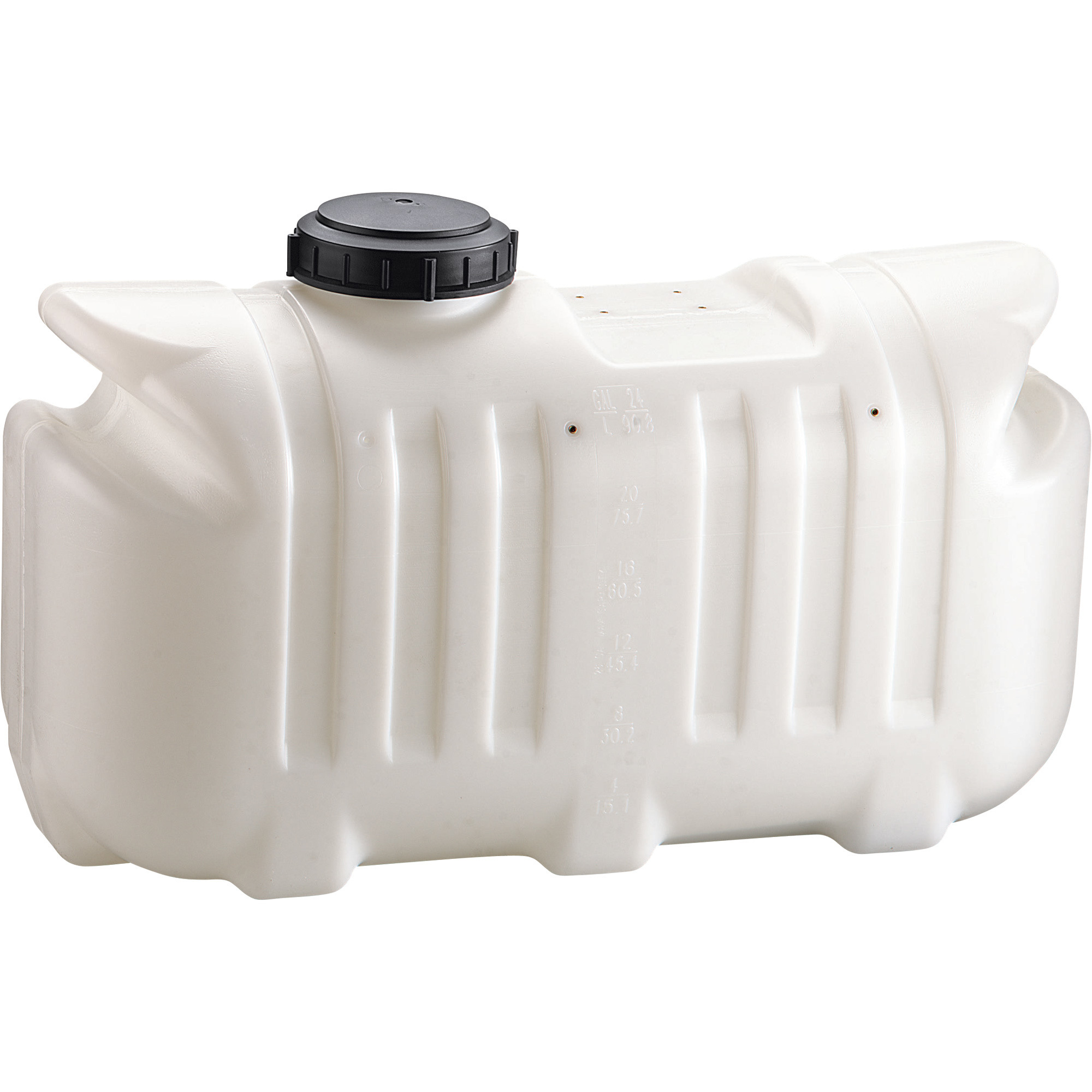

NorthStar Spot Sprayer Tank — 26-Gallon Capacity

Images
Zoom

NorthStar Spot Sprayer Tank — 26-Gallon Capacity

Item# 2691

Only $59.99

Guaranteed Lowest Prices

Qty

Add to Wish List Item In Wish List

In Stock Online

Calculate Shipping

Check Store Availability

Customer Product Rating

Product Details

NorthStar®'s proprietary tank design features extra-thick walls won't bulge or sag. It stands up to chemicals thanks to a special polymer known for its superior chemical resistance. Tank is UV-stabilized to prevent fading and other sun damage. Low center of gravity. Molded-in recesses for pump, handles, hose storage and straps.

Features + Benefits

3/4in. bottom drain opening
FDA-approved for potable water use
Has four 5/16in.-18 bottom mounting holes
19in.L x 9in.W mounting pattern
Stable rectangular design
Tank has liter and gallon fill marks
Replacement parts are available through Northern Tool Parts Department 1-800-270-0810

Key Specs

Item#	2691
Ship Weight	15.0 lbs
Application	Sprayer tank
Tank Description	Horizontal
Tank Size (gal.)	26
Tank Material	Polyethylene
FDA Approved (Drinking Water)	Yes
UV Inhibitors	Yes
Fill Opening (in.)	6
Drain Size (in.)	3/4
Dimensions L x W x H (in.)	33 x 13 1/2 x 18 1/2
Dimensions O.D. x H (in.)	33 x 13 1/2 x 18 1/2

What's Included

(1) 26-gallon sprayer tank

See Accessories

Manufacturer Warranty

1 month parts / 1 month labor

Additional Information

NorthStar Power Equipment Buyer's Guide

Shop NorthStar

Customer Reviews

Top of page

Print Reviews for NorthStar Spot Sprayer Tank — 26-Gallon Capacity

Review Terms + Conditions

Product Question + Answer

Top of page

Print Questions + Answers for NorthStar Spot Sprayer Tank — 26-Gallon Capacity

Q + A Terms and Conditions

Top Accessories

Top of page

Products We Recommend

Spray Guns

	Mist-Pro Chemical Spray Wand — 150 PSI, 15in. Length Item# 2748	In Stock Online	Only $14.99	Qty

Have A Question About This Product?

18 Questions | 24 Answers

Read All Q&A

Ask a Question

Answer a Question

18 Questions : 24 Answers

Product Q&A

Ask your questions. Share your answers.

2 answers

Does this tank have gallon markings on the side

Mrfoodplot

- ohio

(read all my Q&A)

August 23, 2010

Answers

Yes, there are markings on the side of the tank that show in both gallons and liters. On the product page these markings can be seen by clicking the "Zoom" button below the picture.

NorthStarExperts

(read all my Q&A)

August 26, 2010

Yes! And they are fairly accurate, I tested at 15 gallons and it was right on. Hey, I'm an engineer, inclined to test everything.

Don716

- northern Minnesota

(read all my Q&A)

May 23, 2011

2 answers

Is there a hole in the top for the pump pickup tube to go through or just the big fill hole

Mrfoodplot

- ohio

(read all my Q&A)

August 23, 2010

Answers

There is not a hole in the top of the fill cap to be used for a pickup tube. There is a 3/4" drain hole in the bottom of the tank. A pump pickup tube is usually attached to the drain hole in the tank.

NorthStarExperts

(read all my Q&A)

August 26, 2010

no hole for pickup tube, probably because there are so many different applications. But it is easy to drill one anywhere you want.

Don716

- northern Minnesota

(read all my Q&A)

May 23, 2011

1 answer

what size is the drain opening and on which side is it located?

Beowulf

(read all my Q&A)

July 21, 2010

Answers

The drain opening size on this Northstar sprayer tank is 3/4". The drain is located on the bottom.

ProductExpert7

(read all my Q&A)

July 22, 2010

1 answer

What is the diameter of the hole where the threaded cover is?

Details:

I've got a pump that needs to fit through the hole so that I can pump water out of the tank.

Anonymous

July 29, 2010

Answers

The cap on this Northstar Spot Sprayer Tank is 6", and the drain plug on the bottom is 3/4".

NorthStarExperts

(read all my Q&A)

September 2, 2010

1 answer

Location of 3/4 inch outlet

Details:

Does the 3/4 inch outlet come vertically out of the bottom, horizontally out of the bottom or out of the bottom on the end of the tank (how much clearence is needed for an outlet to a electric water pump). Thanks.

tfdofficer

- Illinois

(read all my Q&A)

December 24, 2010

Answers

The outlet on this tank exits horizontally from the bottom of the side of the tank. When using an electric pump with this tank, the clearance required is minimal (typically less than 2 inches). A typical installation would rout a hose from the tank outlet to the pump that could be mounted on the tank or in a remote location depending on your specific setup needs. See links below for some on demand pumps that could be used with this tank.

Products from my answer

NorthStar 12 Volt On-Demand Diaphragm Pump - 5.5 GPM @ 60 PSI

(9)

NorthStar 12 Volt On-Demand Diaphragm Pump - 4.0 GPM @ 60 PSI

(3)

NorthStar 12 Volt On-Demand Diaphragm Pump - 3.0 GPM @ 60 PSI

(2)

NorthstarExpert13

(read all my Q&A)

December 27, 2010

1 answer

what is the measurement of the screw pattern for attaching pump?

Details:

I have a Shurflo 2088-313-145B pump and want to know if it will fit. The holes in the base of it are spaced 4" x 2.5". thanks.

BRademacher

(read all my Q&A)

April 7, 2011

Answers

This NorthStar Spot Sprayer tank does not have holes for mounting a pump. Just drill your own holes to fit any pump you want to use.

NorthstarExpert5

(read all my Q&A)

April 7, 2011

1 answer

I need the height measurement at the highest point of tank at either end. I assume it is 18 1/2 at the top of the fill cap?

altfueltek

(read all my Q&A)

May 20, 2011

Answers

The height on this NorthStar tank is approximately 16.5 inches at the ends.

NorthstarExpert11

(read all my Q&A)

May 20, 2011

2 answers

Is this tank safe for potable water use?

number9

(read all my Q&A)

July 9, 2011

Answers

Yes, this NorthStar sprayer tank is approved by the FDA for drinking/potable water use.

NorthstarExpert11

(read all my Q&A)

July 9, 2011

I use this tank for filling the freshwater tank on my 38 foot camper, so the answer would be Yes

Gcamper

- Omaha, NE

(read all my Q&A)

January 16, 2012

1 answer

Does the 26 gallons measure to the top of the 6 inch cylinder or to the bottom of the 6 inch cylinder?

NCMtSteve

(read all my Q&A)

August 2, 2011

Answers

The 26 gallons on this NorthStar sprayer tank measures to the top of the bung opening.

NorthstarExpert11

(read all my Q&A)

August 3, 2011

1 answer

Is the bottom of this tank flat so no cradle is required?

NCMtSteve

(read all my Q&A)

August 2, 2011

Answers

This 26 gallon NorthStar sprayer tank sits flat but will still need to be secured using bolts or tie down straps.

NorthstarExpert11

(read all my Q&A)

August 3, 2011

NorthStar Spot Sprayer Tank - 26-Gallon Capacity 4.9 5 15 15

Excellent for Hydroponics I bought one each of both the 26 and 16 gallon versions of this tank and couldn't be more pleased. The quality is excellent and I feel these tanks would be a good deal at much higher price. Very rigid and sturdy. I will use the large tank as a gravity-fed make up water tank. It's already pretty airtight, but I'm adding a gasket to the filler cap to add to the seal quality. If you want to do the same thing, see part # 4061T355 at McMaster-Carr. The smaller tank will be the nutrient supply tank with a small, submersible fountain pump mounted inside. The tank has eight tapped 1/8" holes for machine screws and a single 1/4" tapped hole at the upper corner. The taps do not go all the way through, so the tank still remains airtight. The handles are great - well-designed and strong. Here are some specs that may help your decision: Pump mounting area: Approx. 6" x 12" Pump mount screw pattern: 2-1/4" x 3-3/16" Drain port: 3/4" male with gasketed cap. Designed for use with a garden hose. Filler opening: 4-7/8" ID, 5-5/8" OD Again, great tanks. I would absolutely buy again. April 19, 2013

Great Tank I use this tank all the time. It is solid and very well built. Great replacement to my previous department store sprayer. May 14, 2012

Installed as a water tank in a trailer I mounted this tank inside of a horse trailer as a water tank. It has 4 bolt holes in the bottom and some molded in recesses in the top for straps. Using both of these, I was able to do a great job of securing it. It turned out great and my wife loves it. October 10, 2011

26 gallon tank I used this tank to make a water nurse tank for my camper, I typically get it parked and all leveled in the camping stall before I realize I forgot to fill the fresh water tank. With the bolt holes already in the tank I mounted a 12V electric pump on it and wired it into a 7way trailer plug. I can put the tank in the back of the pickup, plug it in, and I can also screw a garden hose onto it if more length is needed. Saves me alot of time and headache!! June 13, 2011

wormcompost brewer I used the tank to brew wormcompost tea, I love the handels on both ends so it is easy to hold to clean. I wish the diameter of the discharge could be larger. June 7, 2011

nice solid tank I bought it (from store stock) to replace a 13 gal tank that had been hit by a car in the winter. I had to drill a hole in it for the pump intake, but everything else just bolted on. (the bottom mounts are slightly different). This is a very solidly made tank and works great. May 23, 2011

Sprayer Tank Good quality tank bought it to replace a tank that was busted put my old spray pump, boom and wand on it some slight modfifications hade to be made due to the old tank was different style but everything works good. May 24, 2010

works great I bought this tank to go along with the 26 gallon atv boomless sprayer. I wanted 50 gallons of storage but they don't make a 50 gallon boomless sprayer and northern's 50 gallon tank wouldn't fit in my application (too tall) I connected this tank to the sprayer using the sprayer agitation kit to allow the pump to pull from both tanks and both tanks draw down evenly. I just have to fill the tanks seperately. I use the two tanks and sprayer system to spray liquid ice melt from my truck with the salt spreader. It works perfectly. February 26, 2010

Great Product I have used this tank for "boondocking" for about 5 yrs. It along with a 12v pump is perfect for transporting water to refill RV water tanks. The design of tank makes mounting of pump and plumbing very easy. Tank is very stable when mounted on cross bars. October 13, 2009

spot sprayer tank I use it to house sodium hydroxide and have never had a leak or problem in 2 years November 18, 2008
